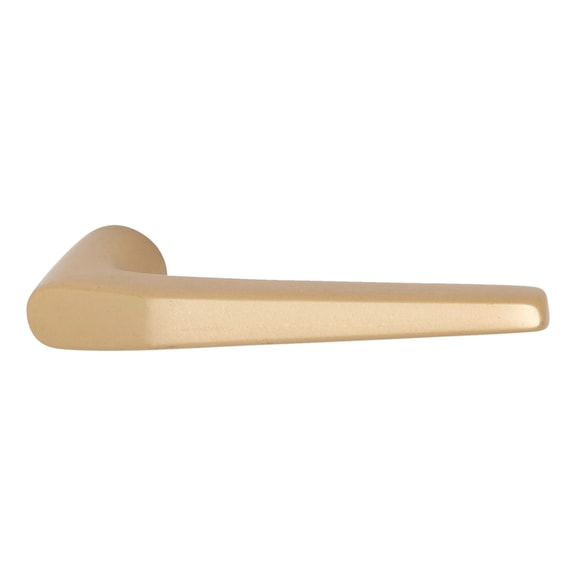

AL 100 door handle pair - DH-ALU-AL100-F4/BRONZE - 1

AL 100 door handle pair

Name: AL 100 door handle pair
Brand: Würth
SKU: 0688160331

Door handle pair AL 100
DH-ALU-AL100-F4/BRONZE

Art.-no. 0688160331

EAN 4024835825368

All versions

Similar products

Prices for customers after login

AL 100 door handle pair

Art.-no. 0688160331

Prices for customers after login

Quantity

x 1 pcs

Show availability in Würth trade store

Exclusively for trade customers

Locate trade store
Login/Register
Call customer service: 22 510 20 10

Can be used for a variety of escutcheons and short and long plates made of aluminium

Suitable for all standard interior doors with door thickness from 38 mm to 42 mm

Notice

With this pair of door handles, the 8-mm square pin is always located securely in the door handle on one side.

Specified dimensions not binding. Subject to technical changes!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

The door handle allows the door to be opened by moving the latch over the lock follower.


Fitting version	Handle/handle
Punched-hole	0 - not applicable
Suitable for	Interior doors, Toilet and bathroom doors, Apartment entrance doors
Shape of door handle	Wedge shape
Bearing Technology	Door handle, loose
Material	Aluminium
Gloss level	0 - not applicable
Surface	Anodised
Colour	Bronze F4
Suitable for min./max. door thickness (TS)	38-42 mm
DIN direction	DIN R/L
Utilisation category	0 - not applicable
Type of assembly	Continuous fastening
Square size	8 mm
Spindle	0 - not applicable
Insertion depth	47 mm
Handle length	120 mm
Door handle mount diameter	17.6 mm
Knob/handle plate/loop handle	0 - not applicable
Rosette/ shield shape	0 - not applicable

Required accessory:

Product

Description

Quantity

Price
/PU

AL 11 long plate pair

DH-ALU-AL11-LONGPLT-CK-F4/BRONZE

Art.-no. 0688160386

Optimal mounting using three visible screws

x 1 pcs
