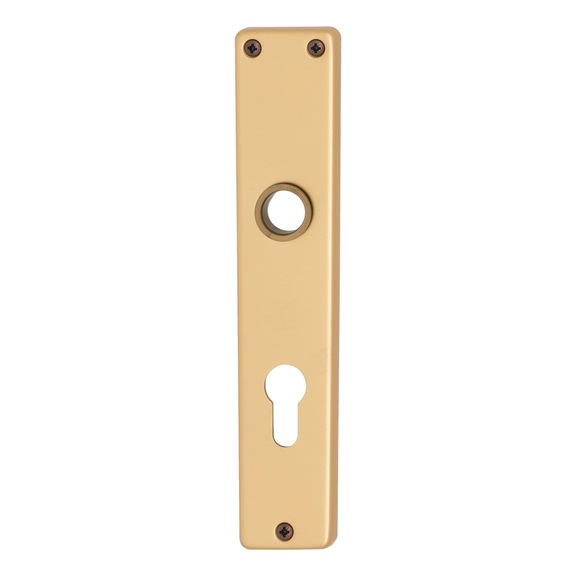

AL 11 long plate pair

Name: AL 11 long plate pair
Brand: Würth
SKU: 0688160386

Long plate pair, AL 11
DH-ALU-AL11-LONGPLT-CK-F4/BRONZE

Art.-no. 0688160386

EAN 4024835826105

All versions

Similar products

Prices for customers after login

AL 11 long plate pair

Art.-no. 0688160386

Prices for customers after login

Quantity

x 1 pcs

Show availability in Würth trade store

Exclusively for trade customers

Locate trade store
Login/Register
Call customer service: 22 510 20 10

Optimal mounting using three visible screws

The long plate pair can be combined with the AL100-AL200 door handle pairs

Specified dimensions not binding. Subject to technical changes!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

For private living areas.


Fitting version	0 - not applicable
Distance (from handle to lock)	72 mm
Punched-hole	PC
Suitable for	Apartment entrance doors, Interior doors
Shape of door handle	0 - not applicable
Bearing Technology	With plastic bearing
Material	Aluminium
Gloss level	0 - not applicable
Surface	Anodised
Colour	Bronze F4
Suitable for min./max. door thickness (TS)	38-42 mm
DIN direction	DIN R/L
Utilisation category	0 - not applicable
Type of assembly	Screw-on
Square size	0 - not applicable
Spindle	0 - not applicable
Door handle mount diameter	17.6 mm
Knob/handle plate/loop handle	0 - not applicable
Rosette/ shield shape	Long plate square
Door-plate length	215 mm
Door-plate width	44/40 mm
Label thickness	7 mm
Hole distance	200 mm

Required accessory:

Product

Description

Quantity

Price
/PU

AL 100 door handle pair

DH-ALU-AL100-F4/BRONZE

Art.-no. 0688160331

Can be used for a variety of escutcheons and short and long plates made of aluminium
