Masonry mortar. TBM

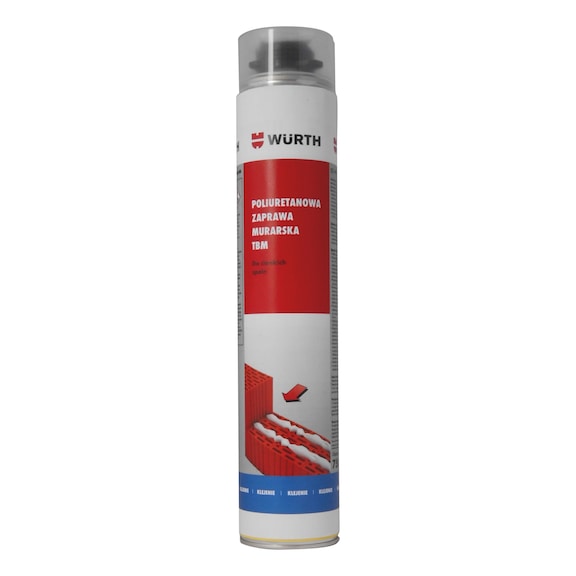

Name: Masonry mortar. TBM
Brand: Würth
SKU: 0892440100

1C polyurethane mortar
GUNFM-1C-PU-B3-GREY-750ML

Art.-no. 0892440100

EAN 4053479219318

All versions

Similar products

Prices for customers after login

Masonry mortar. TBM

Art.-no. 0892440100

Prices for customers after login

Quantity

Show availability in Würth trade store

Exclusively for trade customers

Locate shop
Login/Register
Call customer service: 22 510 20 10

Ready-to-use masonry mortar

One-component PU mortar, moisture cured. No power tools, water or special equipment are required. It can be applied to load-bearing and partition walls. Produces a strong connection in just two hours. Waiting time for the next stages of construction works are significantly shortened (thermal insulation, plaster, tiling works).
Excellent thermal insulation properties due to prevention of thermal bridging. Mould-resistant.

NoticeMortar can only be applied to masonry construction materials with highly accurate dimensions (height and flatness deviation of surface ± 0.3 mm)

Product is covered by Technical Approval ITB No. AT-15-9365/2014

Product information

Würth Catalogue

Datasheets(X)

Safety data sheet

Certificates/ Documents

Application area

Suitable for erecting the thin joint walls in single-family and apartment buildings;

For erecting load-bearing and partition walls made of cellular concrete or ground clay blocks

For erecting partition walls made of ground clay blocks

InstructionsThe first layer of masonry construction materials should always be positioned and levelled on a layer of cement mortar. The number of PU mortar beads varies according to the width and type of masonry construction element. For cellular concrete, the row of the applied TMB mortar should be min. 2–3 cm in diameter; for perforated clay blocks, min. 5–6 cm.

Chemical basis	Single component polyurethane
Colour	Light grey (bright grey)
Smell/fragrance	Characteristic
Moulded density	1.3 g/cm³
Conditions for moulded density	at 20°C and 50% relative humidity
Cell structure	Fine
Tack-free after	12 min
Conditions for being tack-free	at 23°C and 50% humidity
Can be cut after	45 min
Conditions for ability to cut	at 23°C and 50% relative humidity
Final spreading possible after	24 h
Conditions for final spreading	at room temperature
Full resilience	24 h
Min. processing temperature	-5 °C
Max. processing temperature	30 °C
Min. ambient processing temperature	-5 °C
Min. surface processing temperature	-5 °C
Min. processing temperature for can	10 °C
Max. processing temperature for can	30 °C
Min. temperature resistance	-60 °C
Max. temperature resistance	100 °C
Building material class	B3 - Of high flammability
Building material class conditions	in accordance with DIN 4102
Heat conductance λ	0.036 W/(m*K)
Compression strength	50 kPa
Breaking elongation	10 %
Breaking elongation conditions	0 - not applicable
Flexural strength	60 kPa
Conditions for flexural strength	after 28 days, 23°C and 50% relative humidity
Shear strength	80 kPa
Conditions for shear strength	0 - not applicable
Yield (volume) approx.	40 l
Conditions for yield	at 23°C and 50% humidity
Contents	750 ml
Container	Aerosol can
Weight of content	980 g
Shelf life from production	12 Month
Conditions to maintain shelf life from production	at 10°C to 30°C
