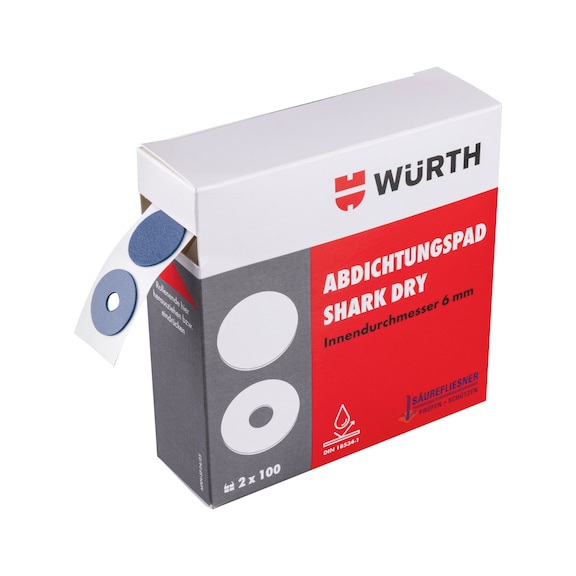

Sealing pad for the tested SHARK DRY fixing system
Sealing pads enable reliable sealing in wet rooms in conjunction with the SHARK TWIST multi-purpose fixing and corresponding screws
Register now and access more than 125,000 products
Variants
Register now and access more than 125,000 products
- Made of a high-quality closed-cell membrane with a waterproof adhesive layer
- Recommended for use with SHARK TWIST fixings - in addition to the A2 screws for SHARK DRY, they form a waterproof fastening
- Meets the requirements for sealing drill holes in accordance with DIN 18534
- Can be used indoors for load classes W0-I (low); W1-I (moderate); outside Germany: W2-I (high); W3-I (very high)
- Tested in accordance with PG-AIV-F and EAD 030352-00-0503
- Tested by Säurefliesner e.V.
Test report 101462401.001 in accordance with EAD 030352-00-0503, complies with testing principles for issuing general construction test certificates for sealing in conjunction with tile and panel covering part 1. (PG-AIV-F).
Test report 101462401.001 in accordance with EAD 030352-00-0503, complies with testing principles for issuing general construction test certificates for sealing in conjunction with tile and panel covering part 1. (PG-AIV-F).
The SHARK DRY A2 screw for fixings is ideal for reliable sealing/fastening solutions in wet rooms in conjunction with the SHARK TWIST multi-purpose fixing and the corresponding A2 screws.
- 1. Drill the hole
- 2. Remove the drill dust from the drill hole
- 3. Ensure that the surface around the drill hole is dust-free and free of grease
- 4. Position first the sealing pad with the centre hole
- 5. Insert the SHARK TWIST anchor into the drill hole
- 6. Position the second pad (without hole) centrally on the anchor
- 7. Use your finger to press the pads around the collar
- 8. Screw the stainless steel screw through the fixture until the screw head rests on it
